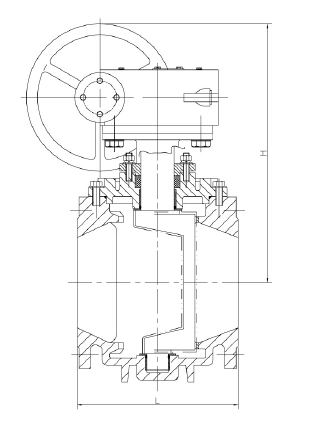

| Product Name | Eccentric Plug Valve |  |
|---|---|---|
| Patt.No. | IEPV01 | |
| Working Pressure | 16bar | |
| Working Temperature | -10°C~120°C for EPDM coated plug -10°C~82°C for NBR coated plug | |
| Flange Types | EN1092-2 PN10/PN16 ANSI B16.1 Class 125 JIS7.5K/10K |
| Product Name | Eccentric Plug Valve | |
|---|---|---|
| Patt.No. | IEPV01 | |
| Working Pressure | 16bar | |
| Working Temperature | -10°C~120°C for EPDM coated plug -10°C~82°C for NBR coated plug | |
| Flange Types | EN1092-2 PN10/PN16 ANSI B16.1 Class 125 JIS7.5K/10K |
