IBLV01

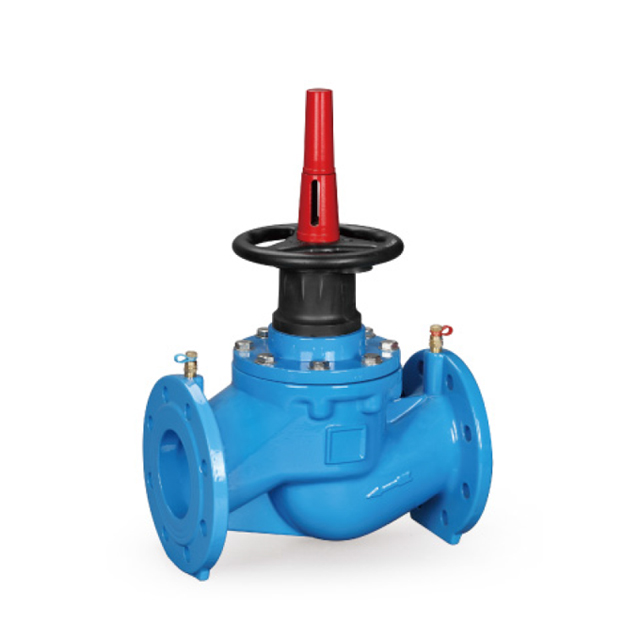

Balance Valve
Availability:
Quantity:
Inquire Add to Basket

Product Name             Balance Valve IBV01
Patt.No. IBLV01
Working Pressure        16bar
Working Temperature -10°C~120°C
Standards                    BS7350-1990
Flange Types

EN1092-2 PN10/PN16

ANSI B16.1 Class 125/150

JIS7.5K/10K
Face to Face                EN558 basic series 1,ASME B16.10-2000
