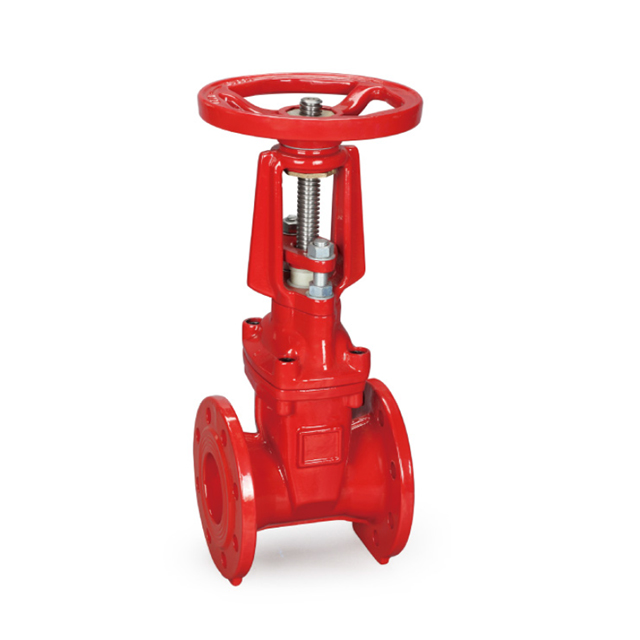

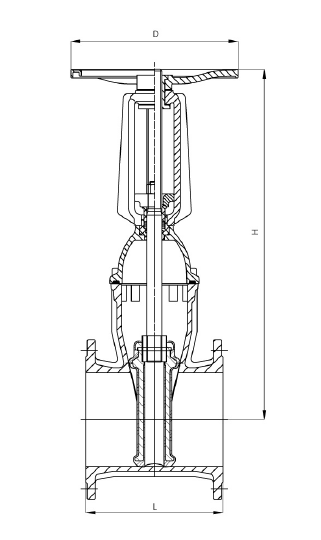

| Product Name | OS&Y Gate Valve Resilient Seated Flange Ends |  |
|---|---|---|
| Patt.No. | FPV01 | |
| Valve Standards | AWWA C515 | |
| Working Pressure | 300PSI | |
| Working Temperature | -10°C~82°C | |
| Flange Types | EN1092-2 PN10/PN16 ANSI B16.1 Class 125 JIS7.5K/10K | |
| Face to Face | EN558-1 basic series 3,ASME B16.10-2000 |
| Product Name | OS&Y Gate Valve Resilient Seated Flange Ends | |
|---|---|---|
| Patt.No. | FPV01 | |
| Valve Standards | AWWA C515 | |
| Working Pressure | 300PSI | |
| Working Temperature | -10°C~82°C | |
| Flange Types | EN1092-2 PN10/PN16 ANSI B16.1 Class 125 JIS7.5K/10K | |
| Face to Face | EN558-1 basic series 3,ASME B16.10-2000 |
